ACOPOWER 12V/24V 200W Mono Solar RV Kits, 30A MPPT Charge Controller (2x100W 30A)

• Monocrystalline solar Panel: 2PCS Mono Solar Panel,  each solar panel comes with 12AWG cable with MC4 male/female quick connectors
• Hight E fficiency : Monocrystalline Module efficiency: 19.22 %; MPPT charge controller peak efficiency: 99.5 %
• MPPT T echnology: Solar Charge Controller has user adjustable settings! LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries
• Green Solar System: : Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
• Common Negative grounding design
• Warranty : 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
• Multiple packages : Order will be delivered in multiple packages

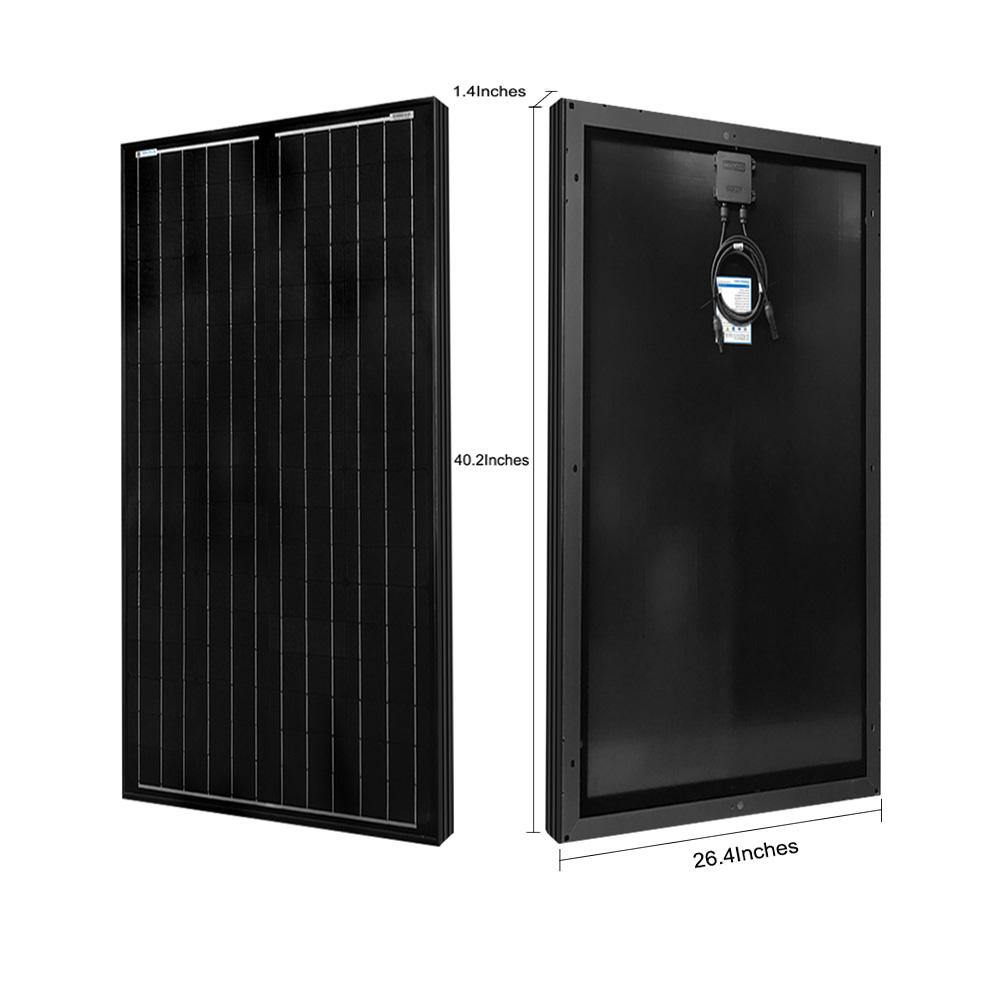

100W Monocrystalline Solar Panel

• Nominal for 12V battery changer
• High-efficiency & high output.
• High transparent low-iron, tempered glass.
• Rugged design to withstand high wind pressure, hail and snow load.
• Aesthetic outlook.

• S pecification

  • Peak Power (Pmax):100W
  • Peak Circuit Voltage(Voc):22V
  • Max Power Voltage(Vmp):17.48V
  • Short Circuit Current(Isc): 6.21A
  • Max Power Current(Imp):5.72A
  • Wind resistance: 2400pa
  • Weight: 20.94 lb
  • Dimension:40.2*20.1*1.4 inches (1120x510x30mm)
  • Application Class:Class A

MPPT 30A Charge Controller

• Ultra-fast tracking speed
• Accurately recognizing and tracking of multiple power point
• User programmable for battery types, load control etc.
• Common positive grounding design
• Rated charge current: 30A
• Battery voltage range: 9V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/390W,24V/780W
• Enclosure: IP30

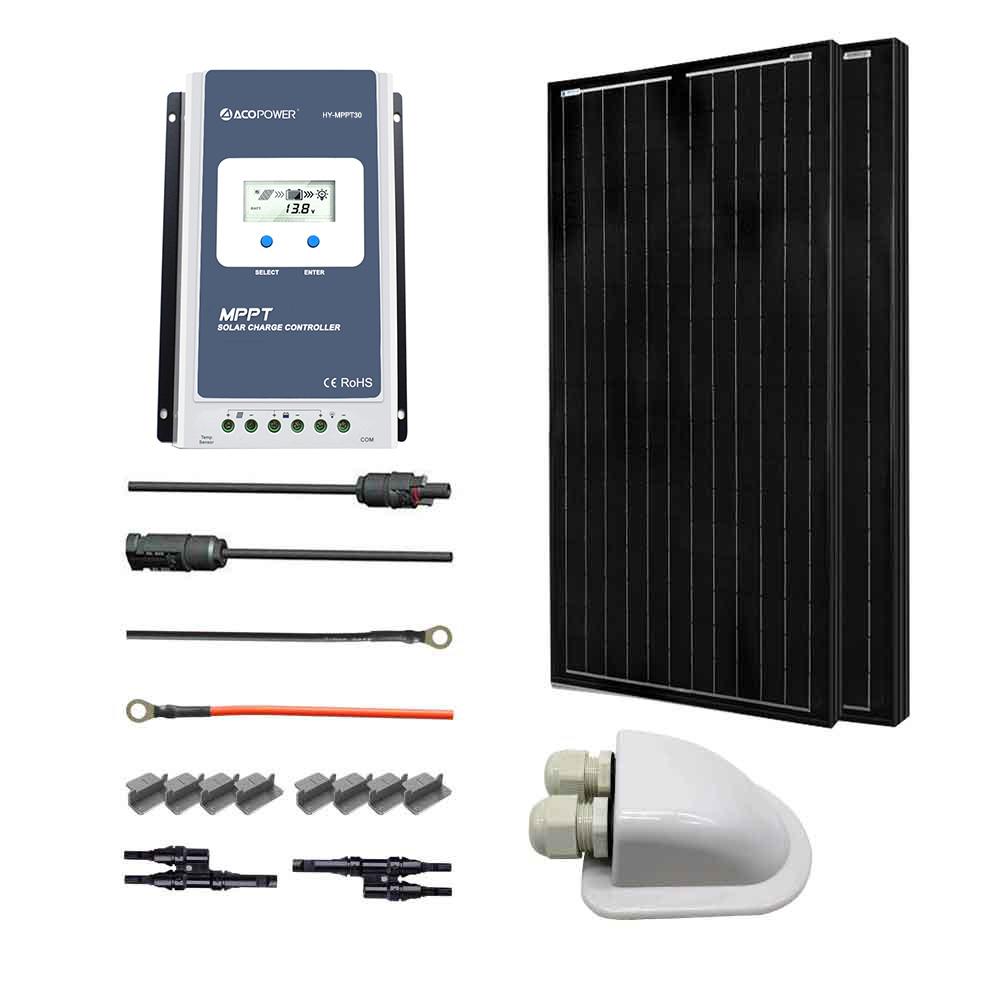

Packing list

• 2PCS 100W Monocrystalline Solar Panel
• 1PC 30A MPPT Charge Controller

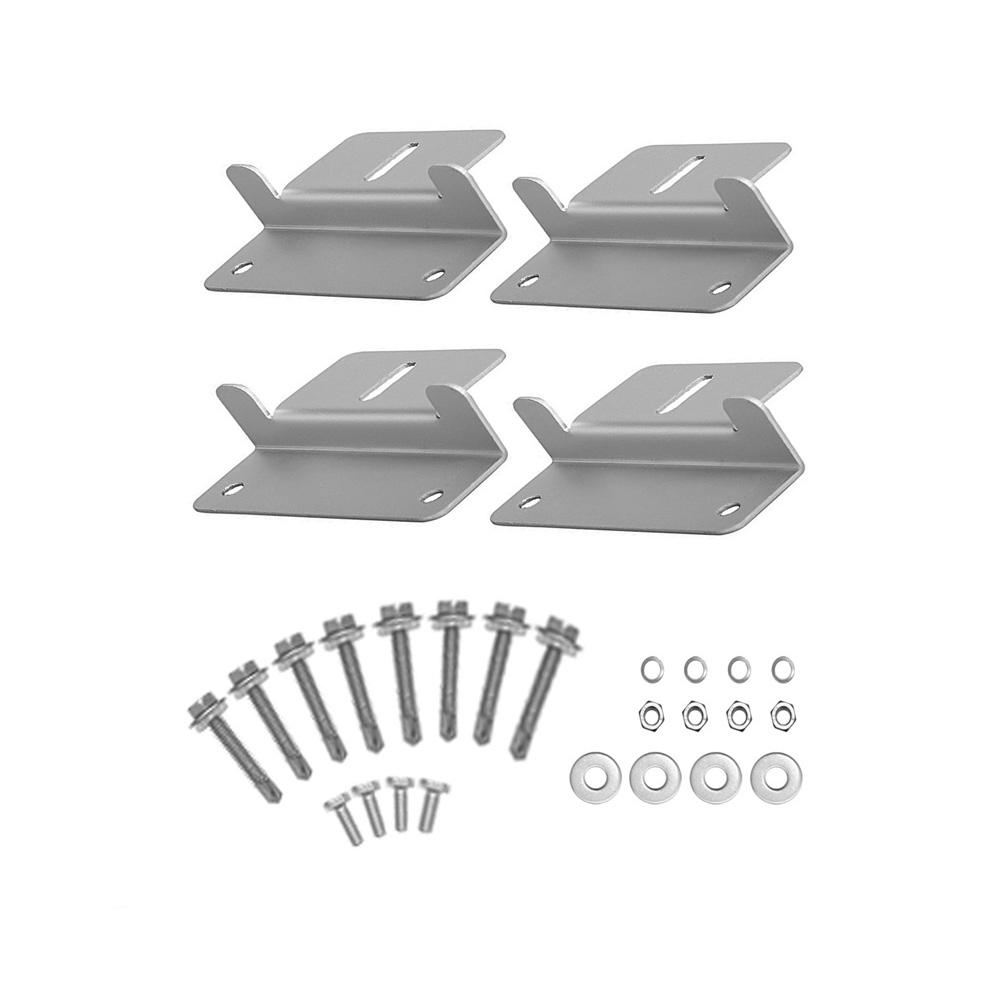

• 2 Sets Mounting Z Bracket

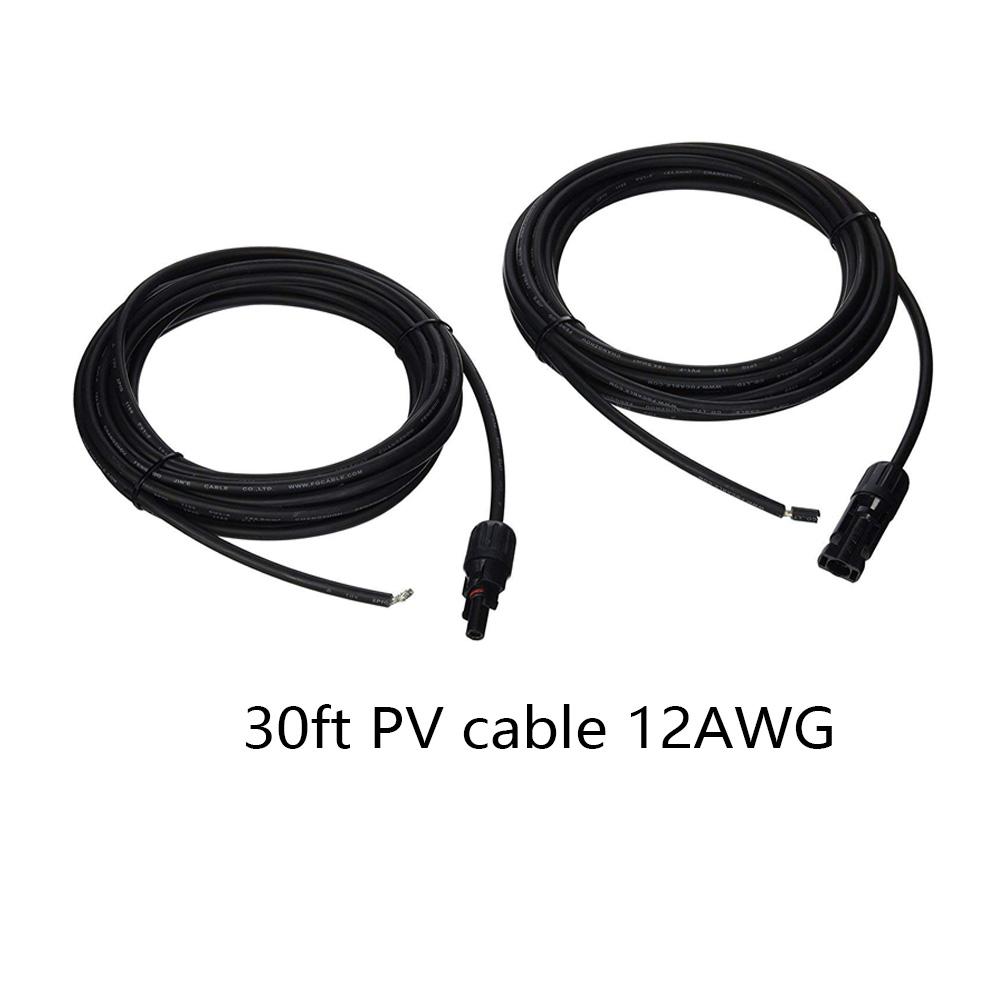

• 1PC 30ft 12AWG PV Cable
• 1PC 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing

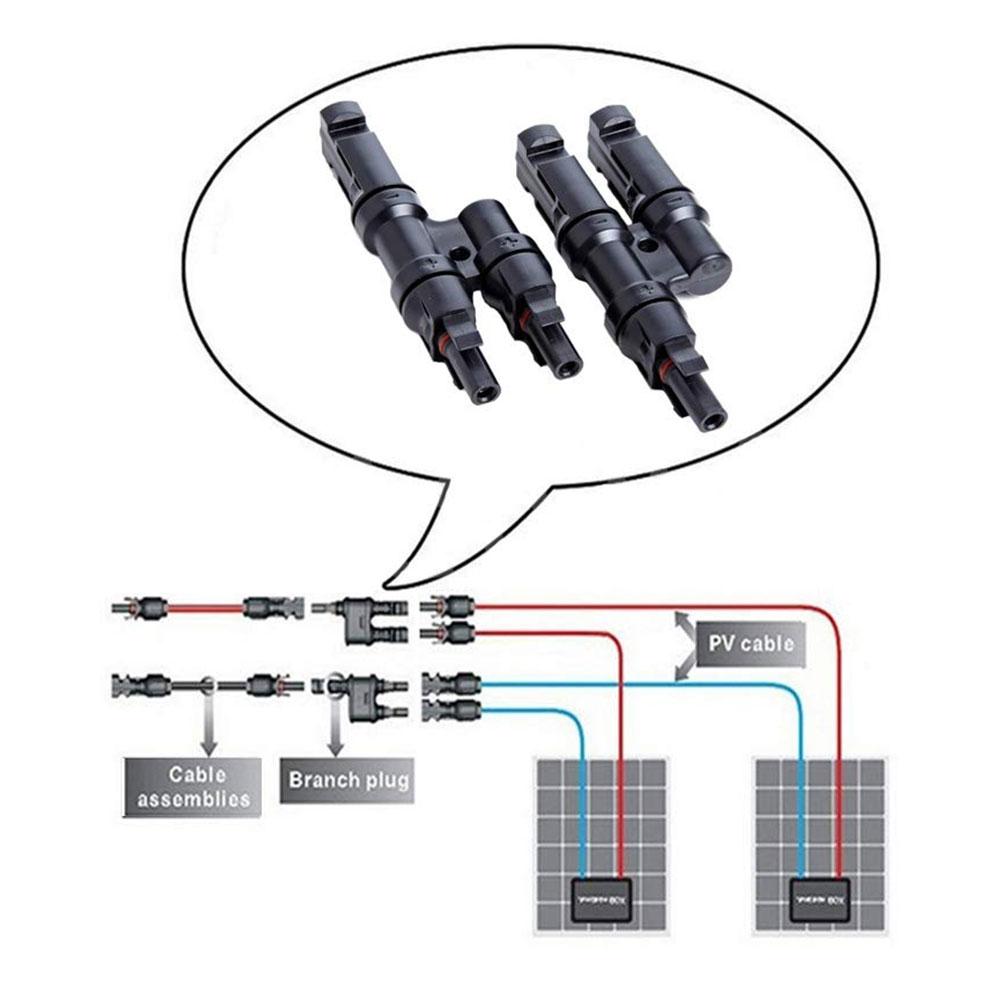

• 1Pair T/Y Connector
