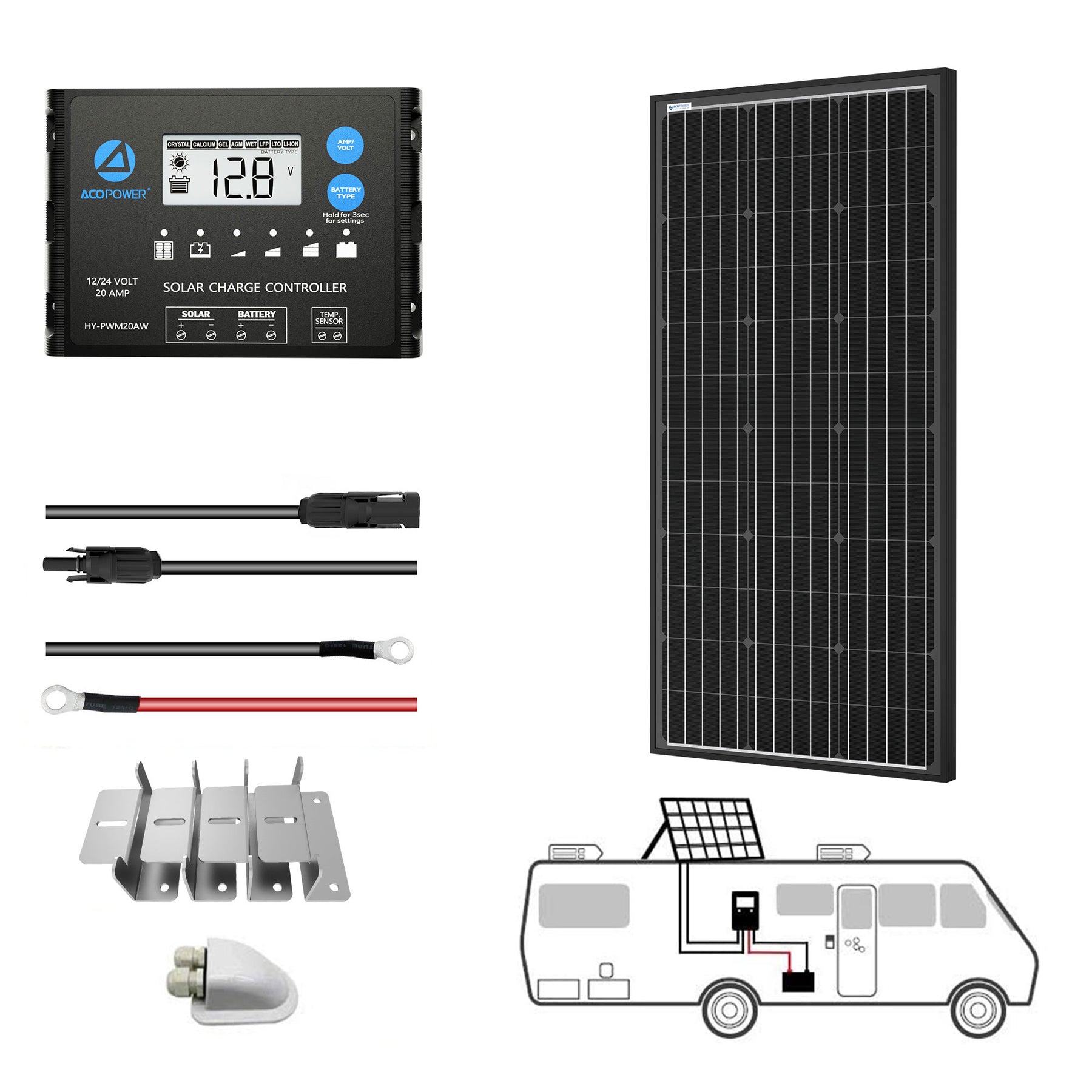

ACOPOWER 100W 12V Mono Solar RV Kits, 20A PWM Charge Controller

• Monocrystalline Solar Panel: 1PC Monocrystalline Solar Panel, each solar panel comes with 12AWG cable with MC4 male/female quick connectors
• Hight E fficiency : Monocrystalline solar Module efficiency: 19.22 %
• 20A PWM Charge Controller : 8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium. 20 amps 12V/ 24v auto continuous charging capacity, enables use of up to 12V/360watts, 24V/720watts.
• Green Solar System: Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
• Warranty : 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
• Multiple packages : Order will be delivered in multiple packages

100W Monocrystalline Solar Panel

• Nominal for 12V battery changer
• High-efficiency & high output.
• High transparent low-iron, tempered glass.
• Rugged design to withstand high wind pressure, hail and snow load.
• Aesthetic outlook.

S pecification

• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc): 6.21A
• Max Power Current(Imp):5.72A
• Wind resistance: 2400pa
• Weight: 20.94 lb
• Dimension:40.2*20.1*1.4 inches (1120x510x30mm)
• Application Class:Class A

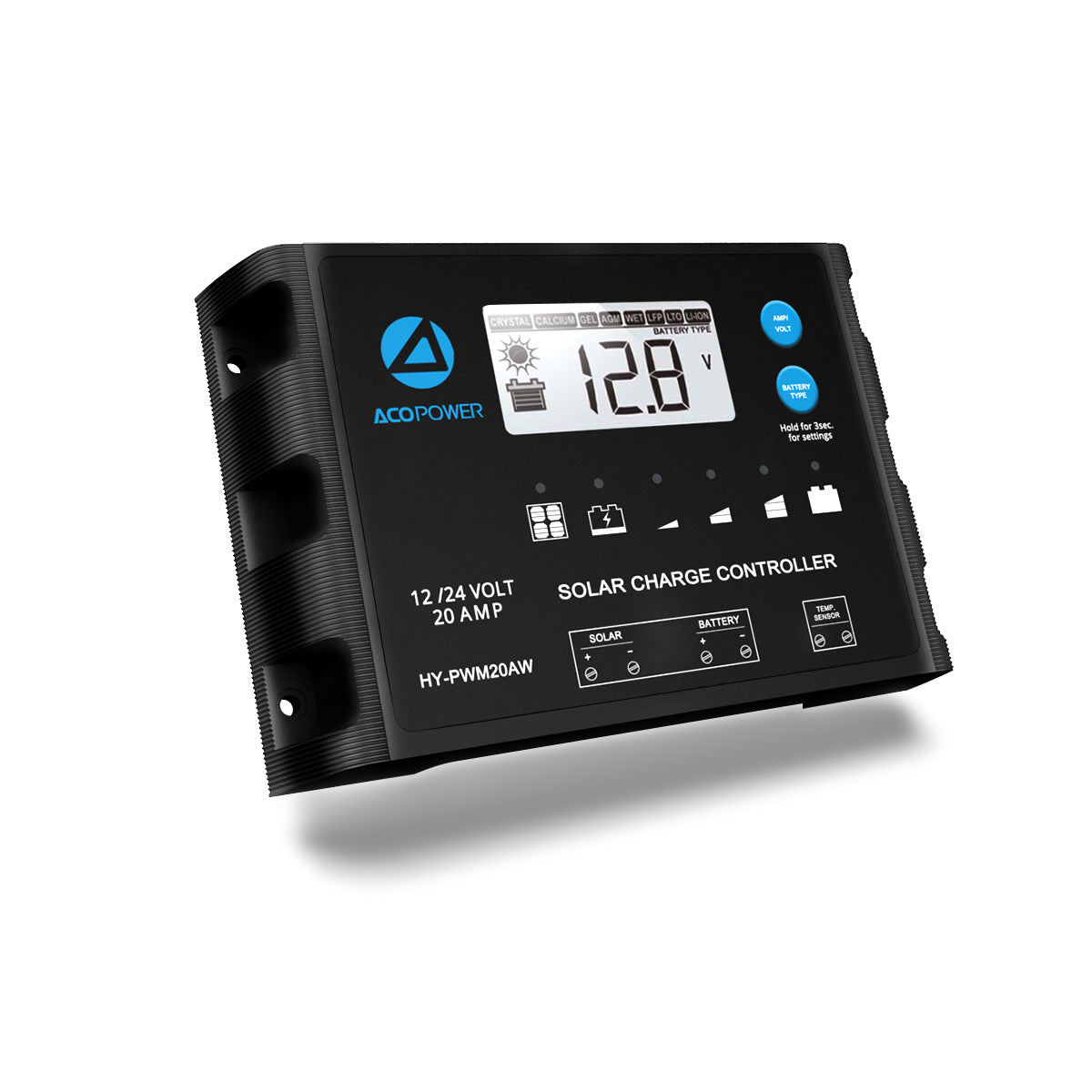

20A PWM Charge Controller

• Nominal Voltage: 12 V/ 24V DC
• Rated Charge Current: 20A
• Max. PV Input Voltage: 50V
• Battery Start Charging Voltage: 3V
• Temperature Compensation Coefficient: -24mV/°C
• Operating Temperature: -40°F to 140°F
• Storage Temperature: -40°F to 185°F
• IP Enclosure Grade: IP65
• Dimensions: 5.59x 3.7x 1.06 inches

Packing list

• 1PC 100W Monocrystalline Solar Panel
• 1PC 20A PWM Charge Controller

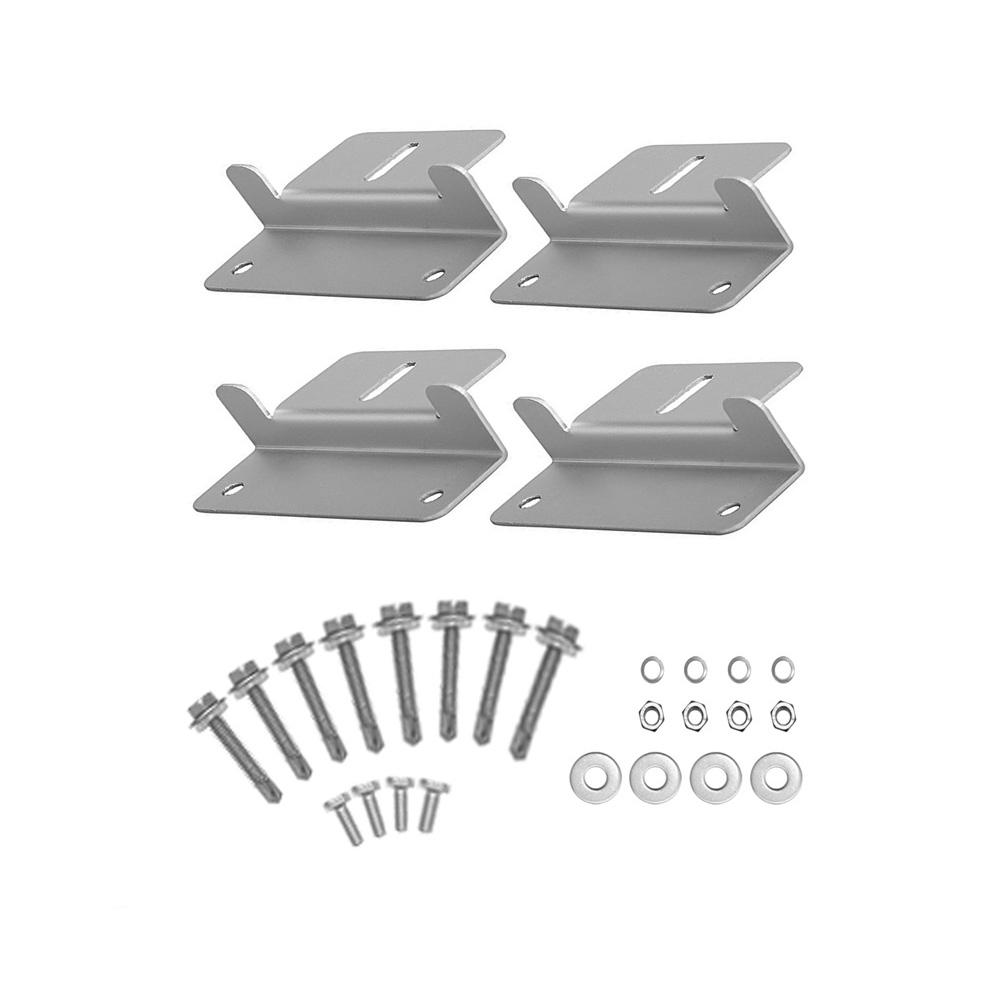

• 1 Sets Mounting Z Bracket

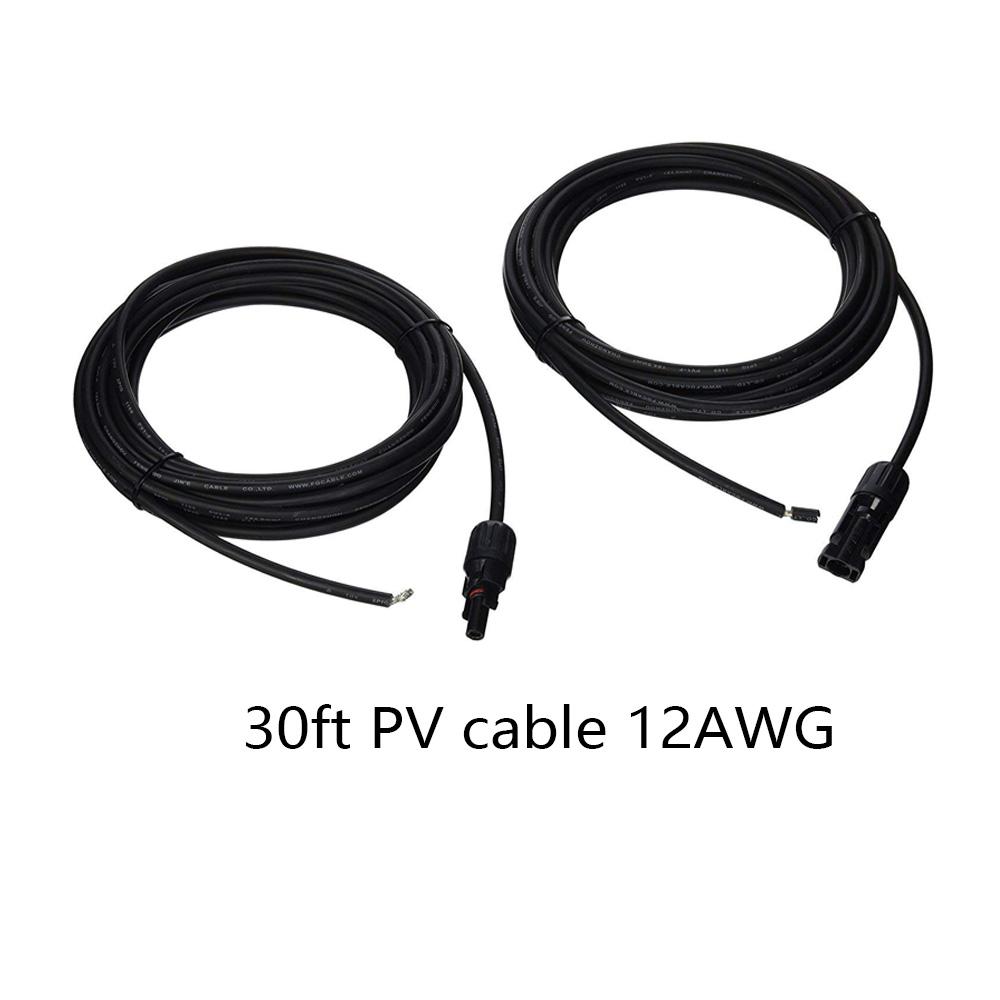

• 1Pair 30ft 12AWG PV Cable

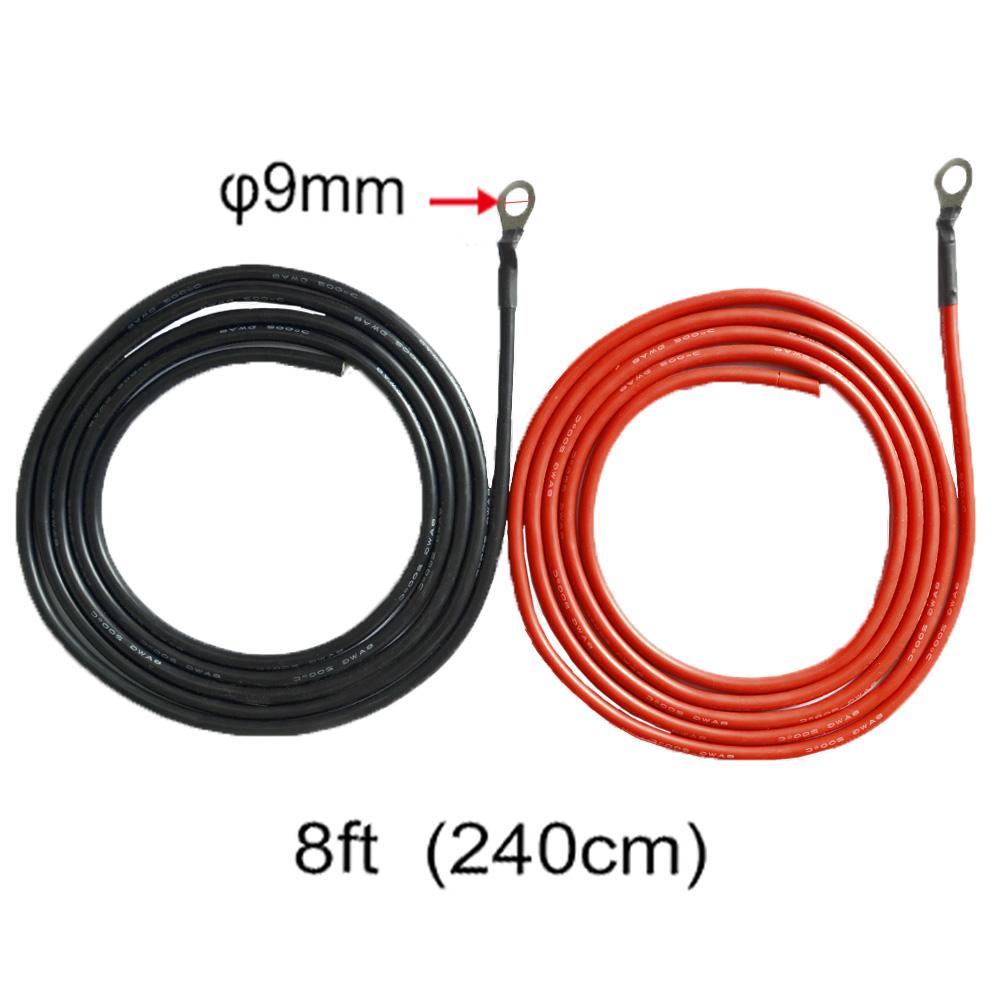

• 1 Pair 8FT 8AWG Tray Cable

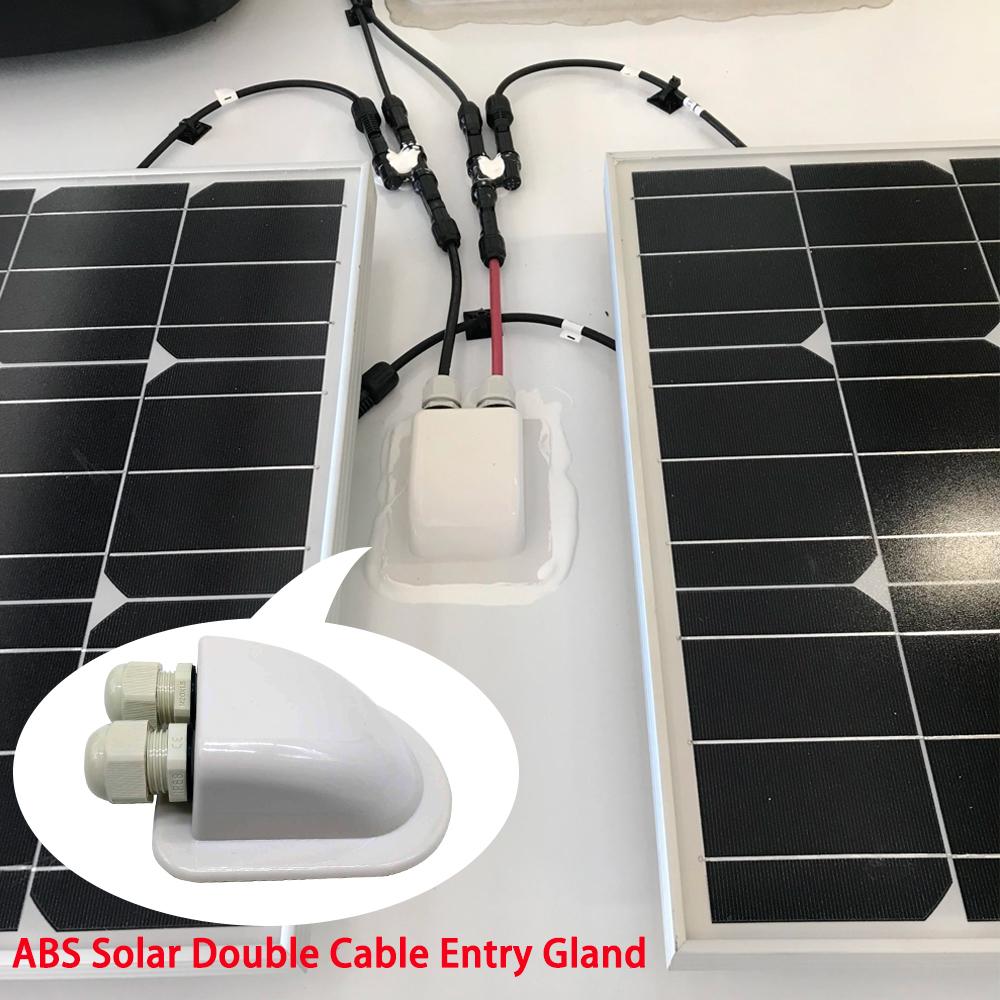

• 1 Pair Cable Entry Housing
